Framework Overview and Practical Rationale

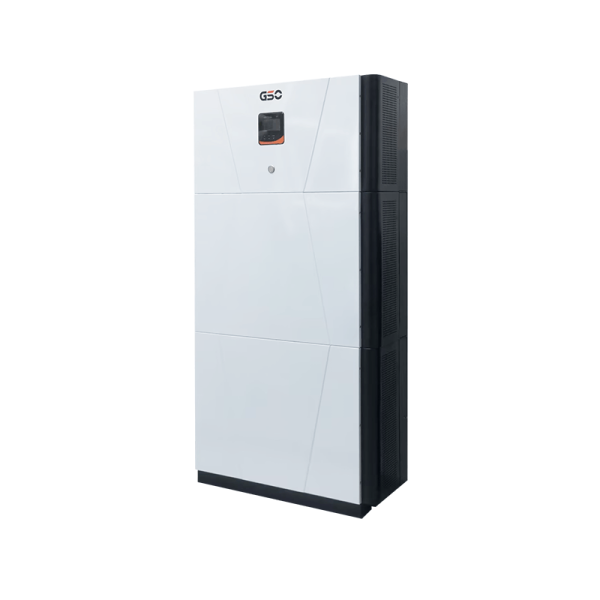

The design of an energy management system (EMS) for remote telemetry demands a structured framework that aligns control logic, communications protocol, and device topology. This article presents such a framework with direct applicability to integrated solutions like all in one storage, where photovoltaic arrays, battery energy storage, and inverters coexist within a singular platform. The need for clear telemetry and robust EMS arises from operational contingencies observed in real systems—public safety power shutoffs in California provide a recent, widely reported instance where distributed storage and reliable state-of-charge telemetry materially influenced resilience outcomes.
Core Design Principles for an EMS and Telemetry Layer
An EMS must be deterministic, secure, and extensible. Deterministic behavior ensures predictable charge/discharge strategies based on measured state of charge (SoC) and load forecasts. Security preserves data integrity between field devices and the control center, typically via TLS and mutual authentication. Extensibility accommodates future protocols or additional PV strings. Architecturally, separate the control plane (EMS decision logic) from the data plane (telemetry and measurements). Recommended telemetry elements include SoC, voltage, current, inverter status, and alarm flags; each parameter should carry a timestamp and quality descriptor to support analytics and forensics.
Protocol Selection and Comparative Insight
Selecting communication protocols requires a balance between bandwidth, latency, and interoperability. Modbus TCP/RTU remains a pragmatic choice for device-level telemetry due to wide vendor support; however, systems requiring richer payloads and publish-subscribe patterns should adopt MQTT with structured payloads (JSON or CBOR). IEC 61850 provides formal semantics for substation-grade interoperability where semantics and engineered logical nodes are necessary. For remote sites with cellular links, implement store-and-forward with message queuing to tolerate intermittent connectivity. When integrating an all in one solar power system, prioritize protocols the vendor supports natively to reduce adapter complexity and preserve telemetry fidelity.
Implementation Best Practices and Common Mistakes
Field implementations often fail due to insufficient attention to sampling strategy, data quality, and failed-device behavior. Sample at rates matched to control objectives—fast sampling for fault detection, slower aggregation for capacity planning. Annotate every data stream with measurement uncertainty; analytic models depend on this. Do not conflate telemetry loss with device failure—design stateful retries and backoff strategies. Avoid tight coupling of remote control commands with immediate device actuation; instead, employ confirmable command patterns. One short remark—log retention policies are not merely archival choices; they enable root-cause analysis after rare events.
Testing, Validation, and Field Metrics
Validation requires both bench testing and staged field rollouts. Bench testing should exercise protocol edge cases: malformed frames, authentication failures, and partial payloads. Staged rollouts validate assumptions about latency and packet loss under realistic cellular or satellite links. Define objective field metrics: telemetry uptime (target >99.5%), command round-trip time (application dependent), and measurement accuracy relative to calibration standards. Use these metrics to trigger escalations and firmware updates; empirical thresholds are more actionable than aspirational goals.
Integration Considerations and Alternatives
When evaluating platform alternatives, compare native telemetry models, third-party adapter needs, and vendor update cadence. Modular systems that accept standard telemetry schemas reduce lifecycle cost. For bespoke requirements, a hybrid approach—device-level Modbus for legacy inverters plus cloud-native MQTT for aggregated system telemetry—often yields a practical compromise. Consider also the lifecycle logistics: firmware signing, OTA procedures, and spare parts availability influence operational risk more than initial capital cost.
Advisory: Golden Rules for EMS and Telemetry Selection
1) Prioritize telemetry integrity: require authenticated, timestamped metrics with quality flags to enable reliable EMS decisions. 2) Match protocol to purpose: use low-latency channels for protection and higher-level publish-subscribe models for fleet analytics. 3) Insist on vendor interoperability and supported update mechanisms; the ability to patch devices securely is non-negotiable. These metrics form the basis for procurement and for operational acceptance testing.
Adopting a clear EMS protocol framework reduces operational ambiguity and improves resilience during grid contingencies—precisely the value proposition that gsopower offers through integrated hardware and firmware alignment. –
